DUTCH CONE PENETROMETER RS-200 – Manual Sondir Test Set (ASTM D-3441)

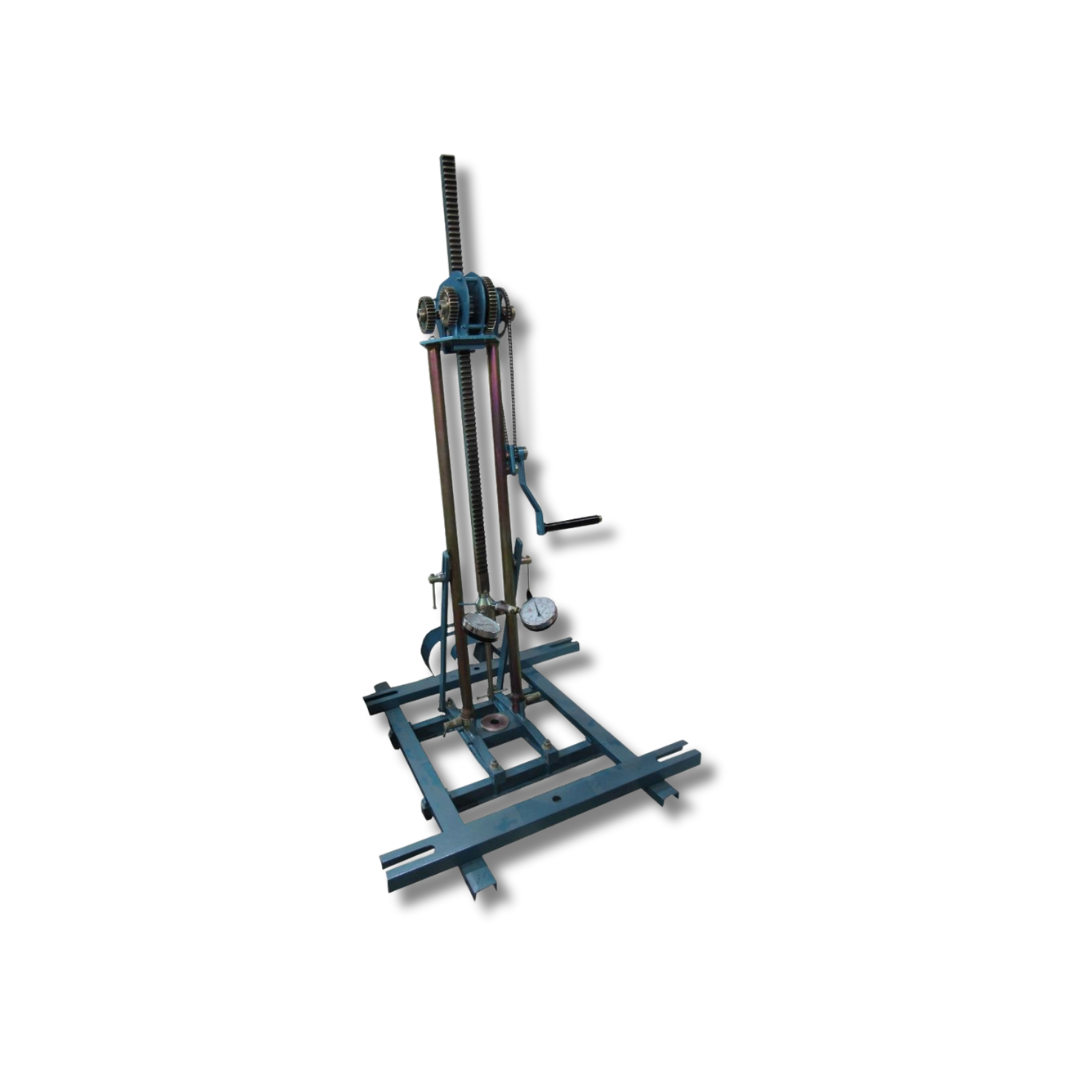

DUTCH CONE PENETROMETER RS-200
This manually operated Dutch Cone Penetrometer is designed for in-situ soil strength and penetration resistance testing in accordance with ASTM D-3441. Widely used in geotechnical investigations, the system is capable of testing up to 2 tons and includes a full range of accessories for field use.

Set Includes:

• Press-In Apparatus – Steel construction, manually operated (2 tons capacity) – 1 set

• Guiding Rod – Machined steel, Ø32 mm, 1 meter, tapered thread – 20 pcs

• Plunger Rod – Round bar, Ø15 mm, 1 meter length – 20 pcs

Push-In System Components:

• Push Adaptor – Machined steel – 1 pc

• Push Head – Machined steel – 1 pc

• Spiral Anchor – Steel anchor – 1 pc

• Spiral Rod – Machined steel, 1.5 m length – 1 pc

Cone Components:

• Standard Cone – Machined steel, Ø10 cm² – 1 pc

• Friction Sleeve Cone – Hardened steel, Ø15 cm² – 1 pc

• Friction + Pressure Cone – Hardened steel – 1 pc

Wrench & Tool Kit:

• Adjustable pipe wrench – 2 pcs

• Other tools include:
  Spanner wrench, Allen key, oil can (2), steel brush (1), piston wrench (1), steel tape (1), O-ring seal (2), oil seal (2)

Additional Parts:

• Base Press – 1 pc

• Loading Fasten Rods – 2 pcs

• 10 kg Load Weights – 2 pcs

• Pressure Gauge 60 kg/cm² capacity – 1 pc

• Manometer 250 kg/cm² capacity – 1 pc

Gross Weight: ±600 kg
