DUTCH CONE PENETROMETER RS-230 A – 120 kN Hydraulic System with Digital Software Integration

DUTCH CONE PENETROMETER RS-230 A

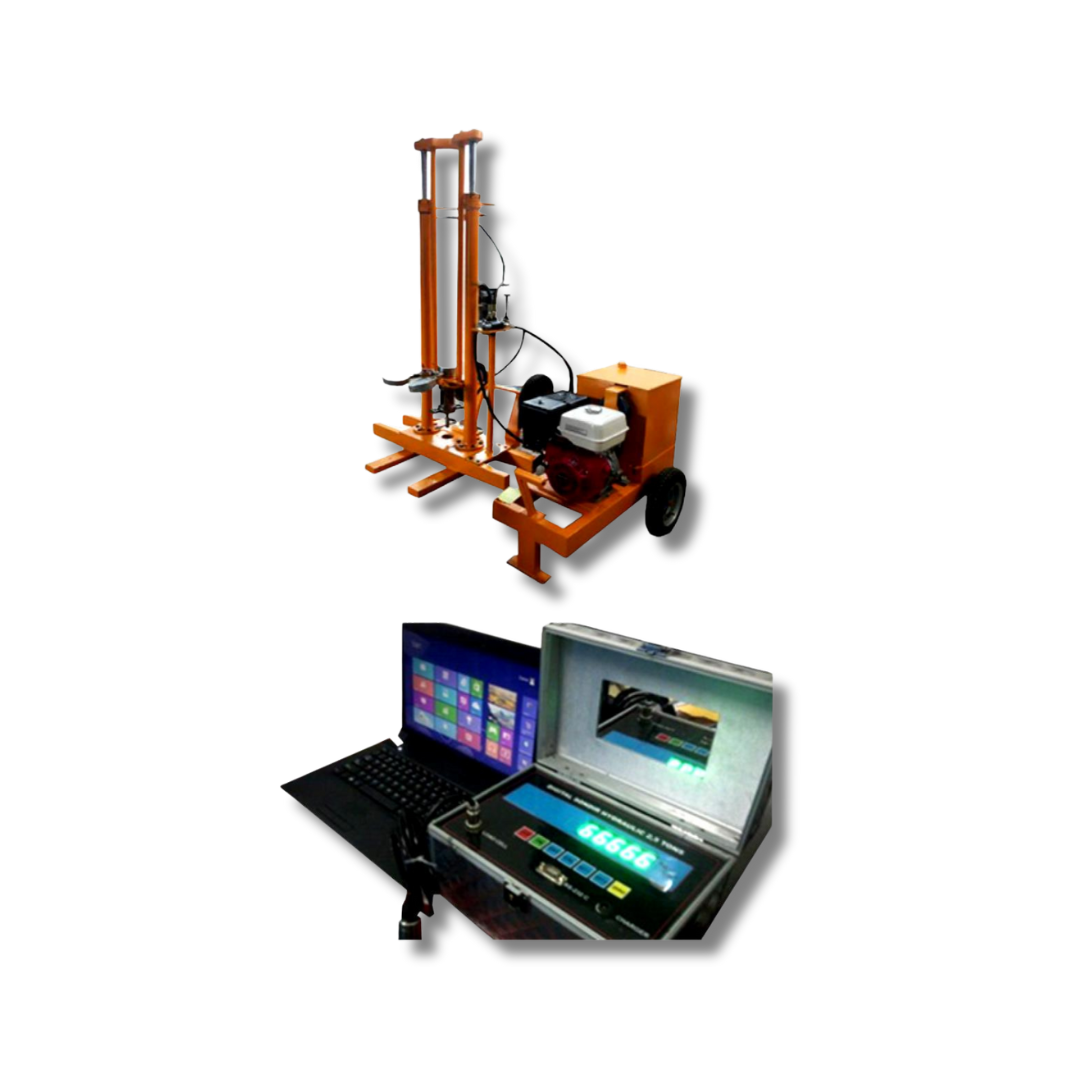

The RS-230 A is a full-featured 10 Ton (120 kN) Dutch Cone Penetrometer system equipped with digital monitoring technology and software for real-time soil investigation. This hydraulic set allows for precise measurement of cone resistance and friction resistance, suitable for heavy-duty geotechnical field projects.

Main Set Includes:

• Hydraulic Driving Appliance – Steel construction, hydraulic operated – 120 kN capacity – 1 unit

• Engine Pump / Gasoline Engine – Hydraulic, double action – 1 unit

• Sounding Rod + Plunger – Ø36 mm machined steel, 1 m length – 20 sets

• Push and Pull Adaptor – 1 set

• Spiral Anchor – 4 pcs

• Spiral Rod – Machined steel, 1.5 m – 1 pc

• T-Piece – Machined steel, welded – 1 pc

• Mantled Cone – Hardened precision steel, tapered thread – 1 set

• Friction Cone – Hardened steel with friction jacket – 1 set

• Fasten Press, Beam Canal – 2 pcs

Wrench & Tool Kit Includes:

• Pipe wrench (2), adjustable wrench (1), spanner wrench (1)

• Allen key (1), screwdriver (1), oil can (1), steel brush (1),

• Piston wrench (1), seal tape (2), oil seals (2), carrying box – 1 set

Digital System Add-On Includes:

• Digital Read Out – 1 unit

• Pressure Transducer – 1 unit

• Data Acquisition Software – 1 unit

• USB Adapter – 1 unit

• Data Processor (Laptop) – 1 unit

Capacity: 120 kN (10 Ton)
