FIELD CBR TEST SET RS-260 – ASTM D-4429 Compliant

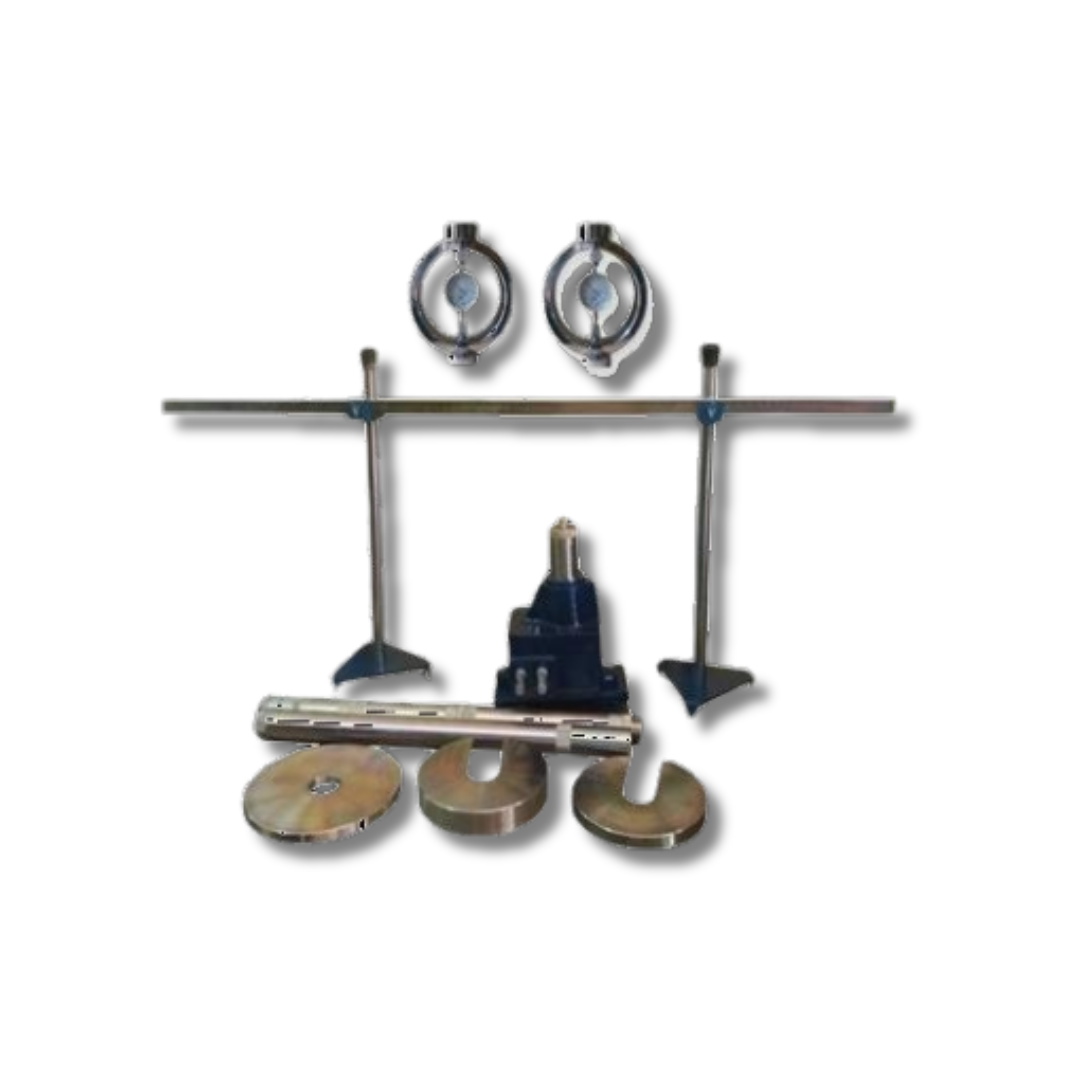

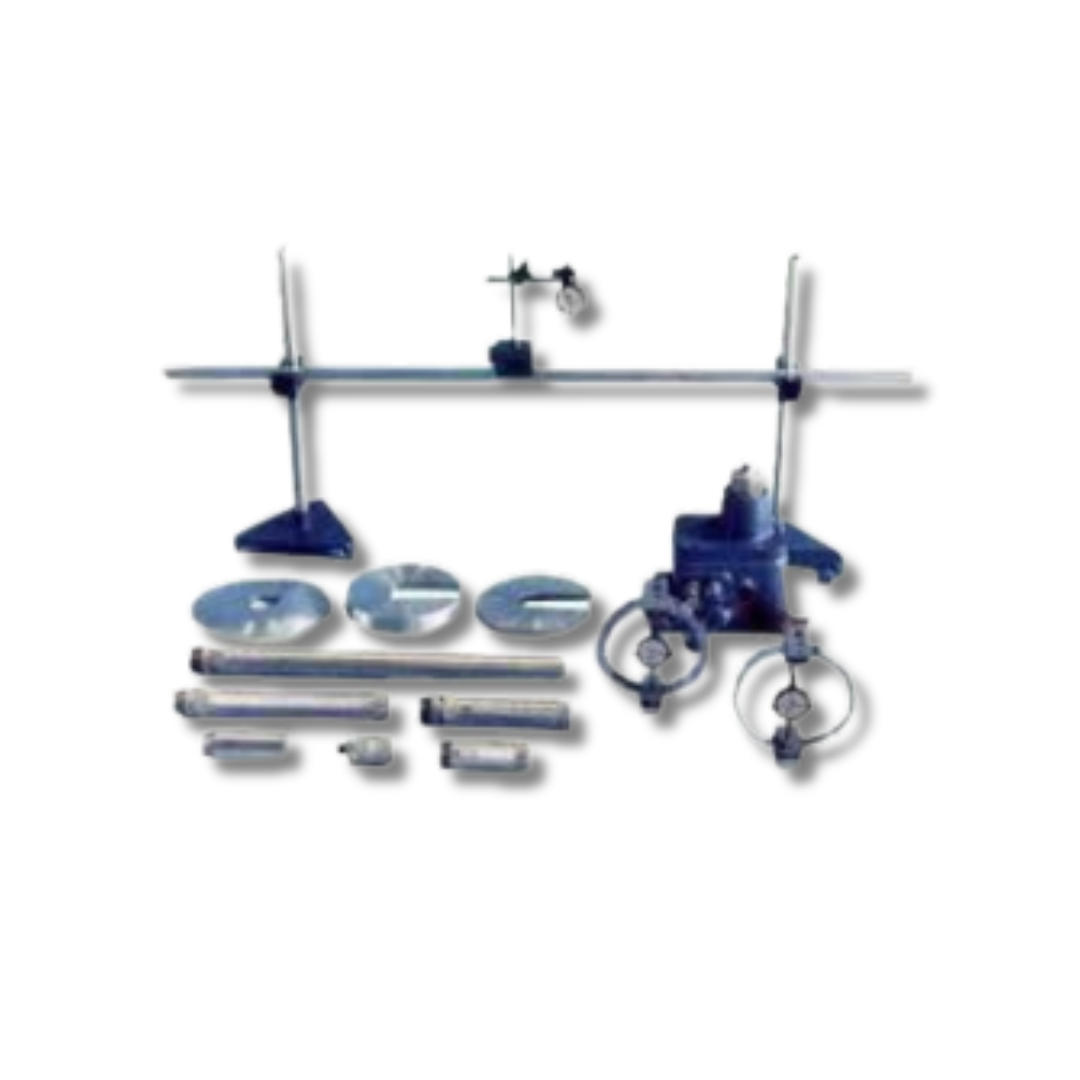

FIELD CBR TEST SET RS-260
The RS-260 Field CBR Test Set is used to determine the California Bearing Ratio of soil in the field, as per ASTM D-4429. It evaluates the strength of subgrade soil and base courses for road and pavement construction. The set is manually operated and includes all necessary components for load and penetration measurement.

Set Includes:

• Mechanical Jack
  Cast aluminum housing, 5-ton capacity, hand-operated, 2-speed – 1 pc

• Swivel Head – Cast aluminum – 1 pc

• Field Penetration Piston
  Machined steel, adjustable height – 1 pc

Penetration Rod Assembly:

• Penetration Piston – Machined steel, plated

• Ø2.5 cm, 50 cm length, with 5.3 cm² cross section – 1 pc

• Extension Set – Machined steel, plated
  Sizes: 5 cm, 10 cm, 20 cm, 30 cm, 60 cm – 1 set
  Provided with connecting adaptor

Load & Measurement System:

• Reference Beam – Steel pipe, 150 cm span – 1 pc

• Surcharge Weights:

  • Slotted Surcharge Weight (10 kg, Ø10″) – 1 pc

  • Slotted Surcharge Weight (5 kg, Ø8.5″) – 2 pcs

  • Solid Surcharge Weight (5 kg, Ø8.5″) – 2 pcs

• Proving Ring –

  • 10 kN capacity – 1 pc

  • 20 kN capacity – 1 pc

• Dial Indicator – 30 x 0.01 mm – 2 pcs

• Dial Holder – Magnetic – 2 pcs
